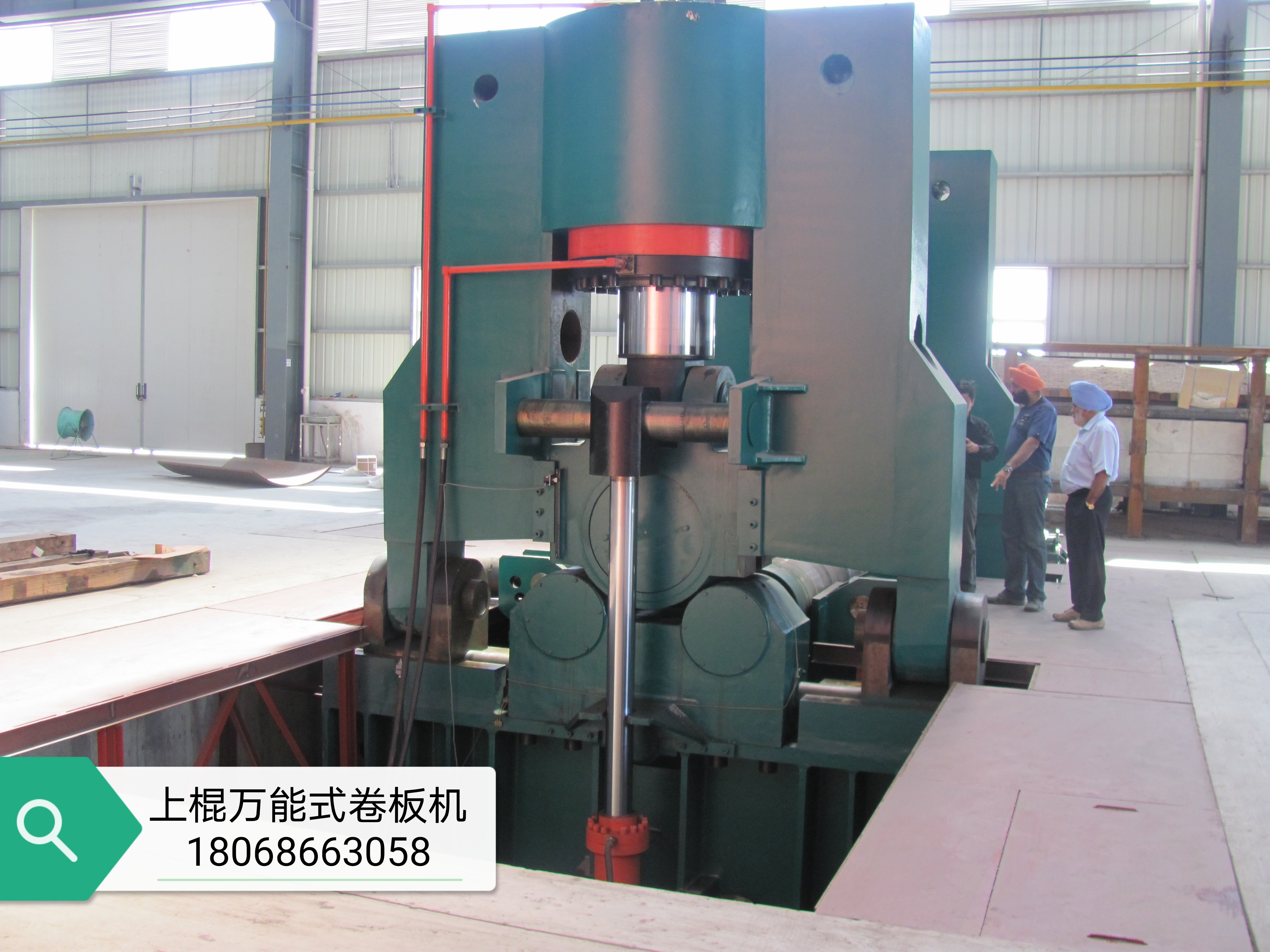

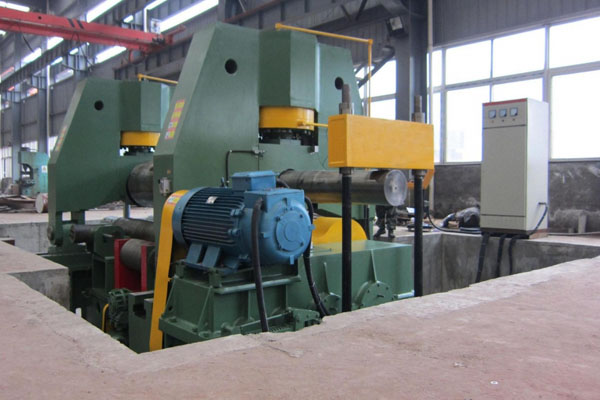

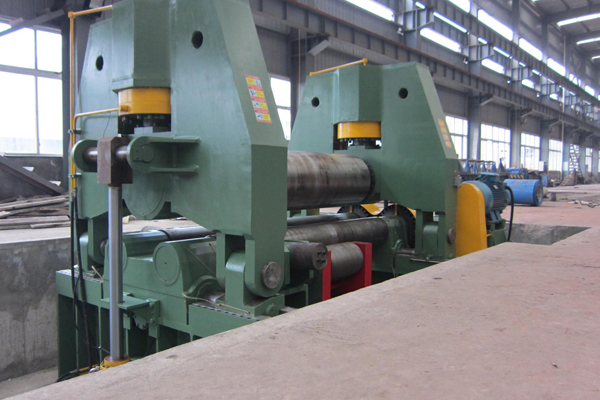

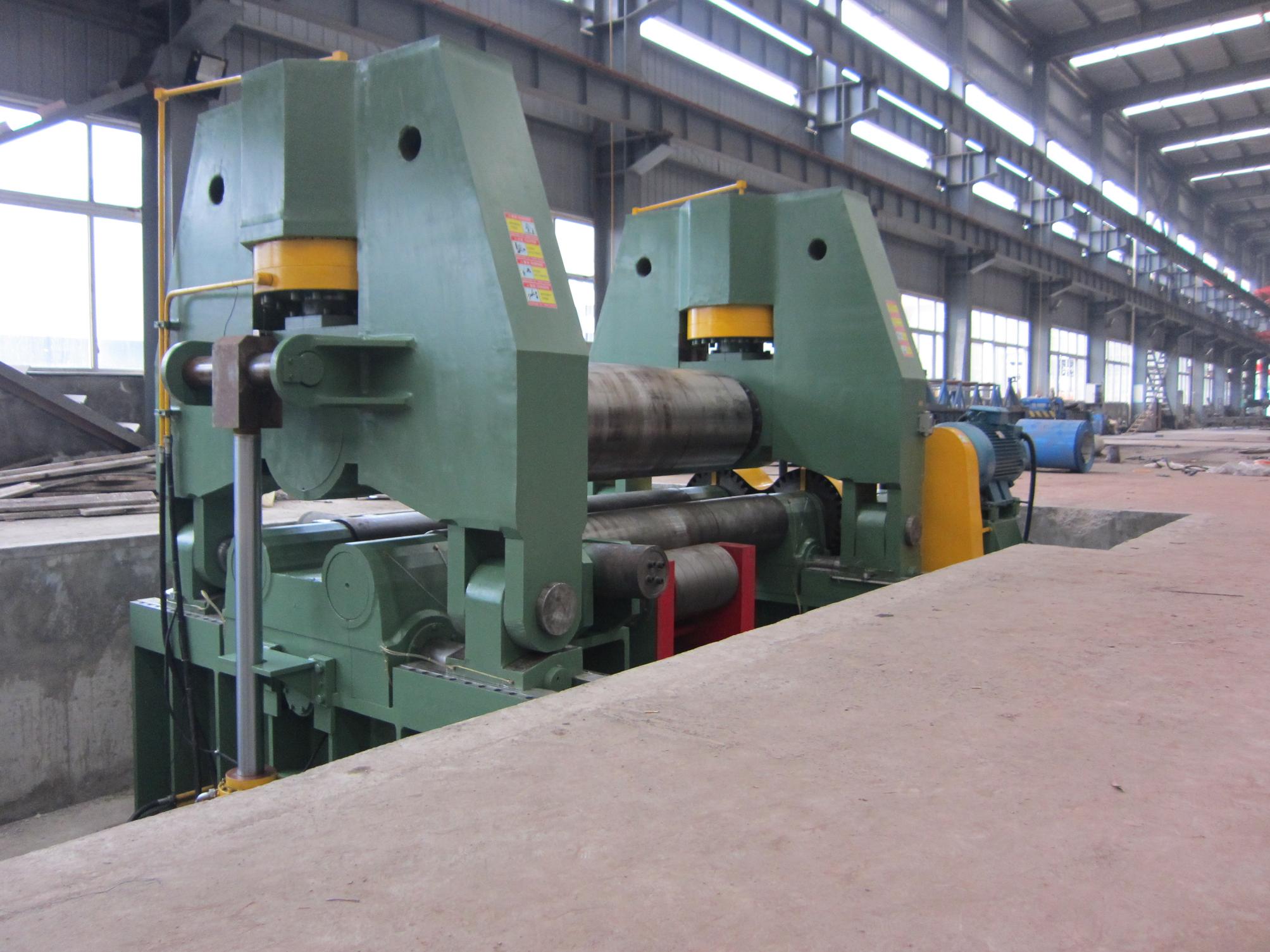

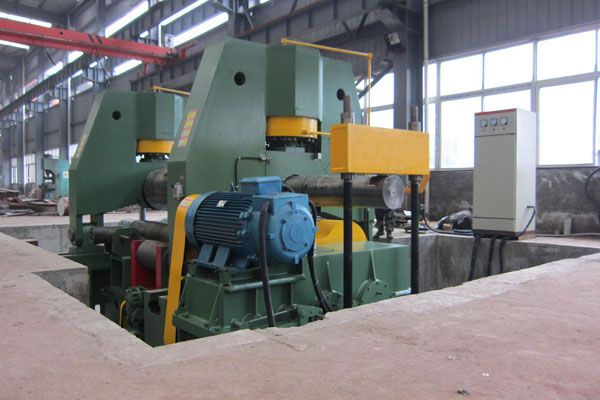

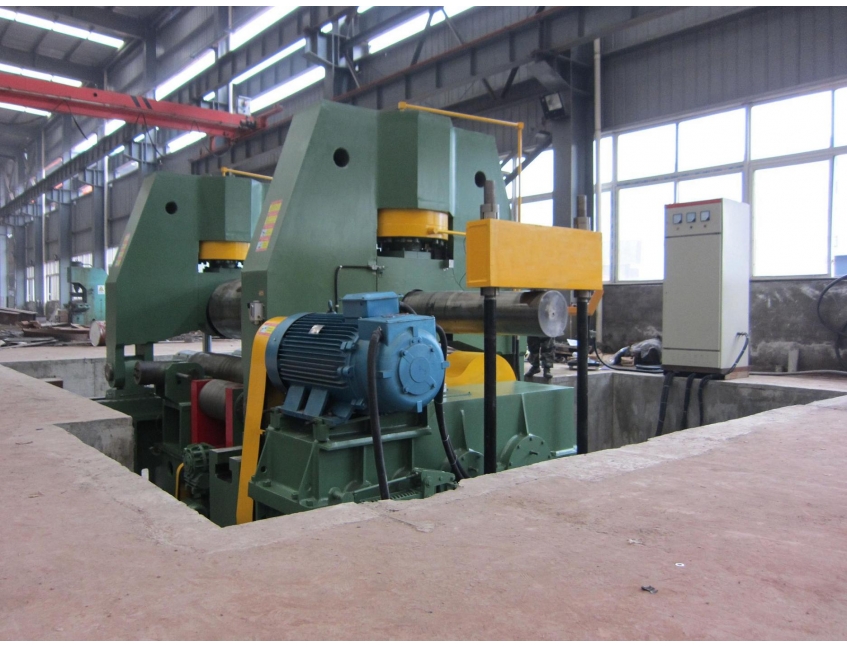

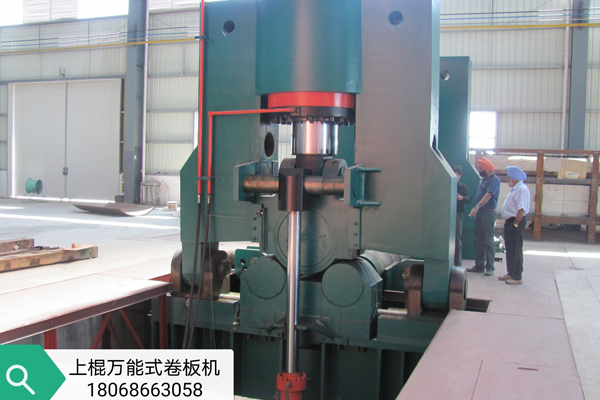

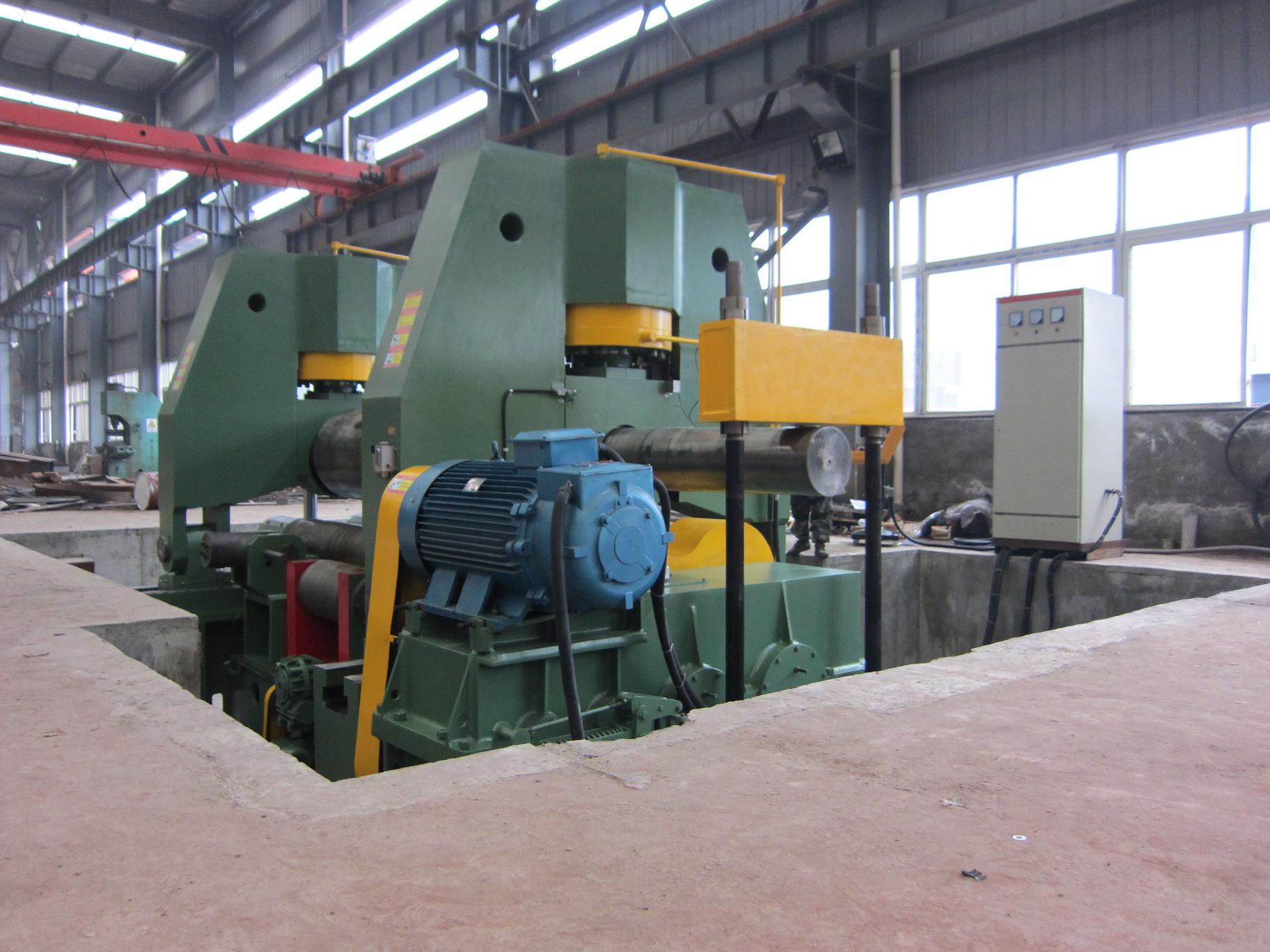

T3SNC-12T3000W Plate Bending Machine
T3SNC-12T3000W Plate Bending Machine is a kind of double pinch plate bending machine. The top roller is hydraulic driving. The top roller is vertically and horizontally adjustable, and the two lower rollers are fixed. All of the rollers in alloyed steel are induction hardening and heat treatment. All of the rollers will be grinded and polished after induction hardening treatment.
Features
▲electronic parallelism control system
▲rollers synchronization and balancing control fully electronically controlled
▲top roller hydraulic driving, can be vertically and horizontally adjustable.
▲anti-friction material in sliding area
▲instantaneous brake for rollers rotation for high safety
▲reversal side hydraulic driving
▲Mobile control panel station, with low voltage control
▲Mobile control push-buttons, convenience for operator
Parameters
W11SNC-120x3000 | |||
Rated Pressing Force from Upper Roller | Ton | 1600 | |
Working temperature | At natural temperature | ||
Plate yield limit | MPa | 245 | |
Max. | Thk. of bending plate | (mm) | 120 |
Thk. of pre-bending | 100 | ||
Width of bending plate | 3200 | ||
Min. rolling dia. with max.size | (mm) | 350 | |
Diameter of Roller | Upper | mm | 920 |
Bottom | mm | 560 | |
Working Rollers | Material | 42CrMo | |
Hardness | (HB) | 260-300 | |
Induction Hardened Roll | YES | ||
Roll Profile | crown | ||
Lifting Mode | hydraulic | ||
Central distance of bottom rollers | mm | 1080 | |
Diameter of supporting roller | mm | 520 | |
Adjusting way of supporting rollers | motorized | ||
Rolling speed | m/min | 3.5 | |
Upper roller descending speed | mm/min | 120 | |
Upper roller ascending speed | mm/min | 200 | |
Upper roller horizontal moving speed | mm/min | 100 | |
Upper roller supporting way | Self aligning roller bearing | ||
Bottom roller driving way | motor + reducer + breaker | ||
Upper roller horizontal moving way | motor+ warm gear | ||
Upper roller horizontal moving speeding | mm/min | 100 | |
Upper roller Synchronous Precise/Accuracy | ±(mm) | ≤0.20 | |
Upper roller moving precise/accuracy | ±(mm) | ≤0.20 | |
Upper roller re-position precise/accuracy | ±(mm) | ≤0.20 | |
Upper roller action control | PLC + transducers | ||
Conical Bending Device | YES | ||
Power character | 380V/50Hz/3phase | ||
Control System | Control way | PLC control + moving controller | |
Display of position & displacement | LCD | ||
PLC | OMRON | ||
Electrical Part System | SIEMNENS | ||
Main Power Motor | (KW) | 110 | |
Motor for hydraulic | (KW) | 55 | |
Motor for horizontal moving | (KW) | 30 | |
Hydraulic System | Max. Working Pressure | (MPa) | 25 |
Valve | YUKEN | ||
Seal | VALQUE | ||
Electrical & Hydraulic Protection Againts Overload | YES | ||
Construction Steel Material | Q235 | ||
Side Support for Big Sheet Metal Diameters | optional | ||
Central Support for Big sheet Metal Diameters | optional | ||
Feeding Table | optional | ||
Oil Cooler System | optional | ||
