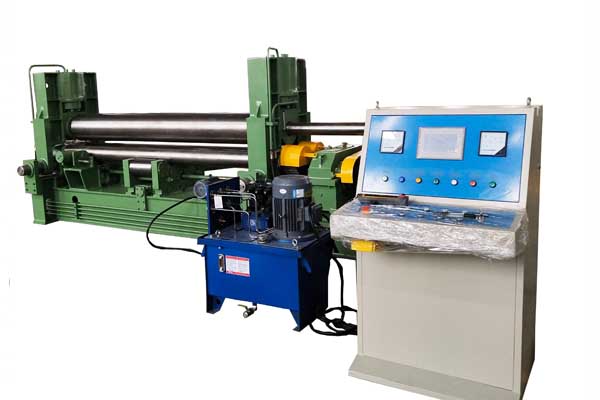

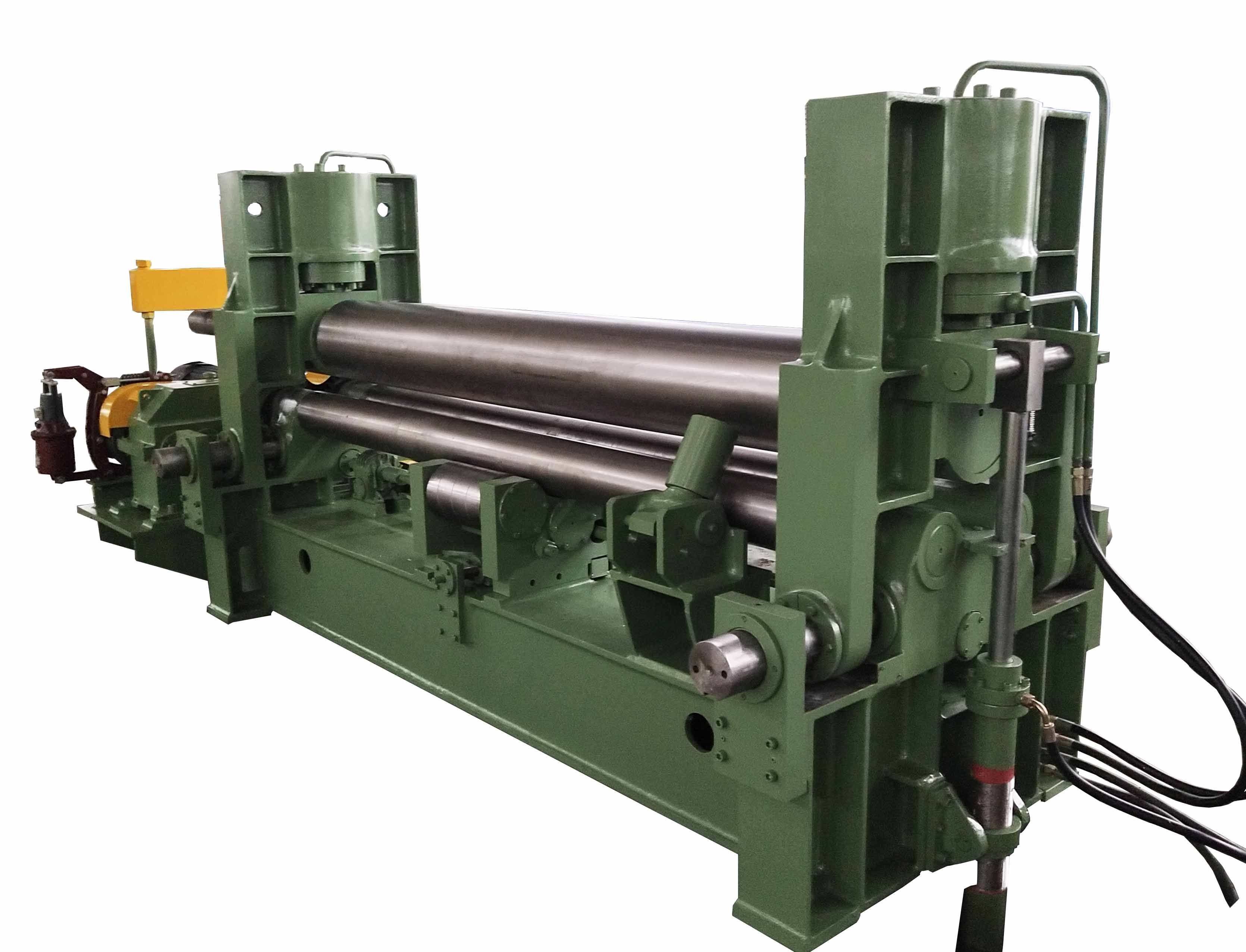

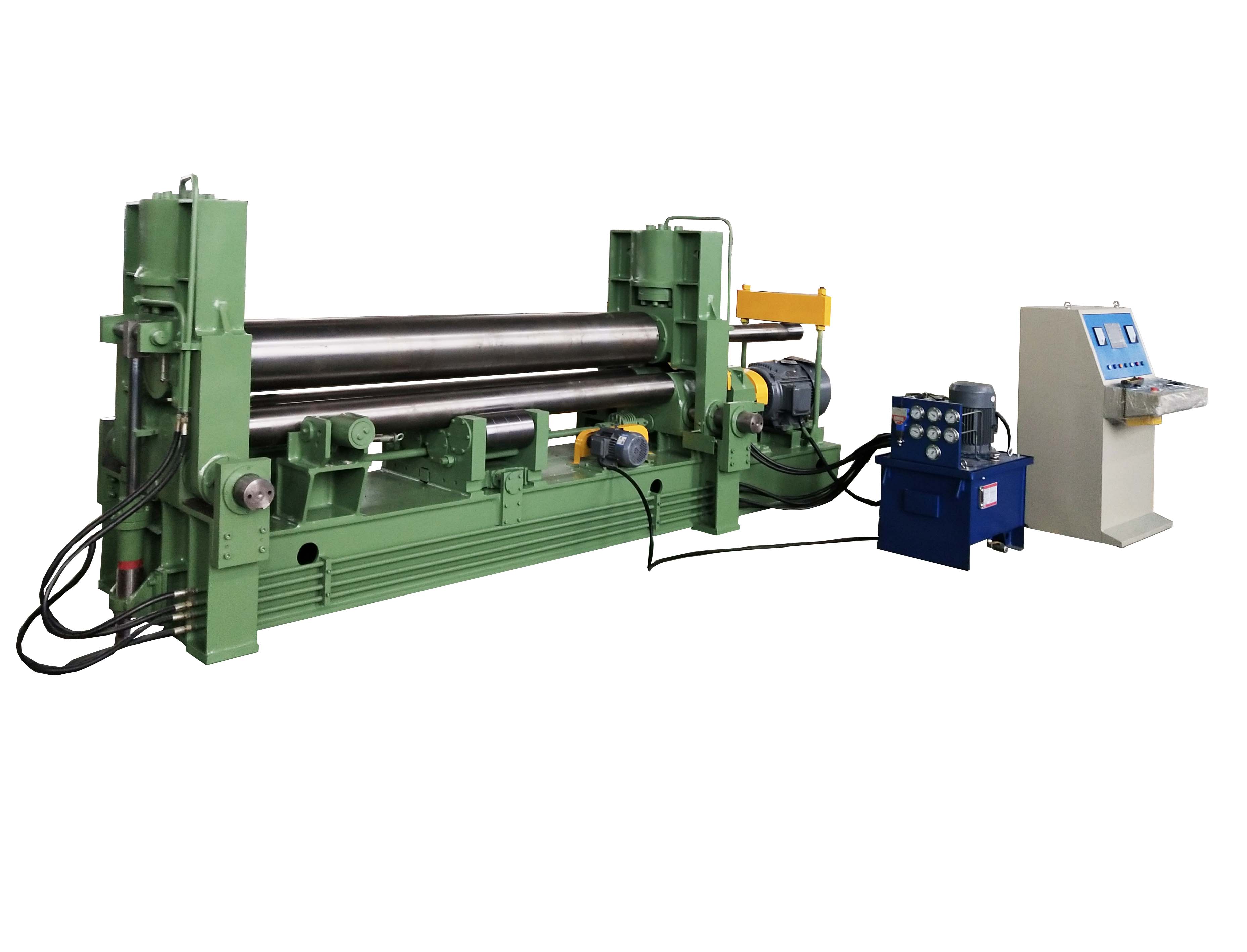

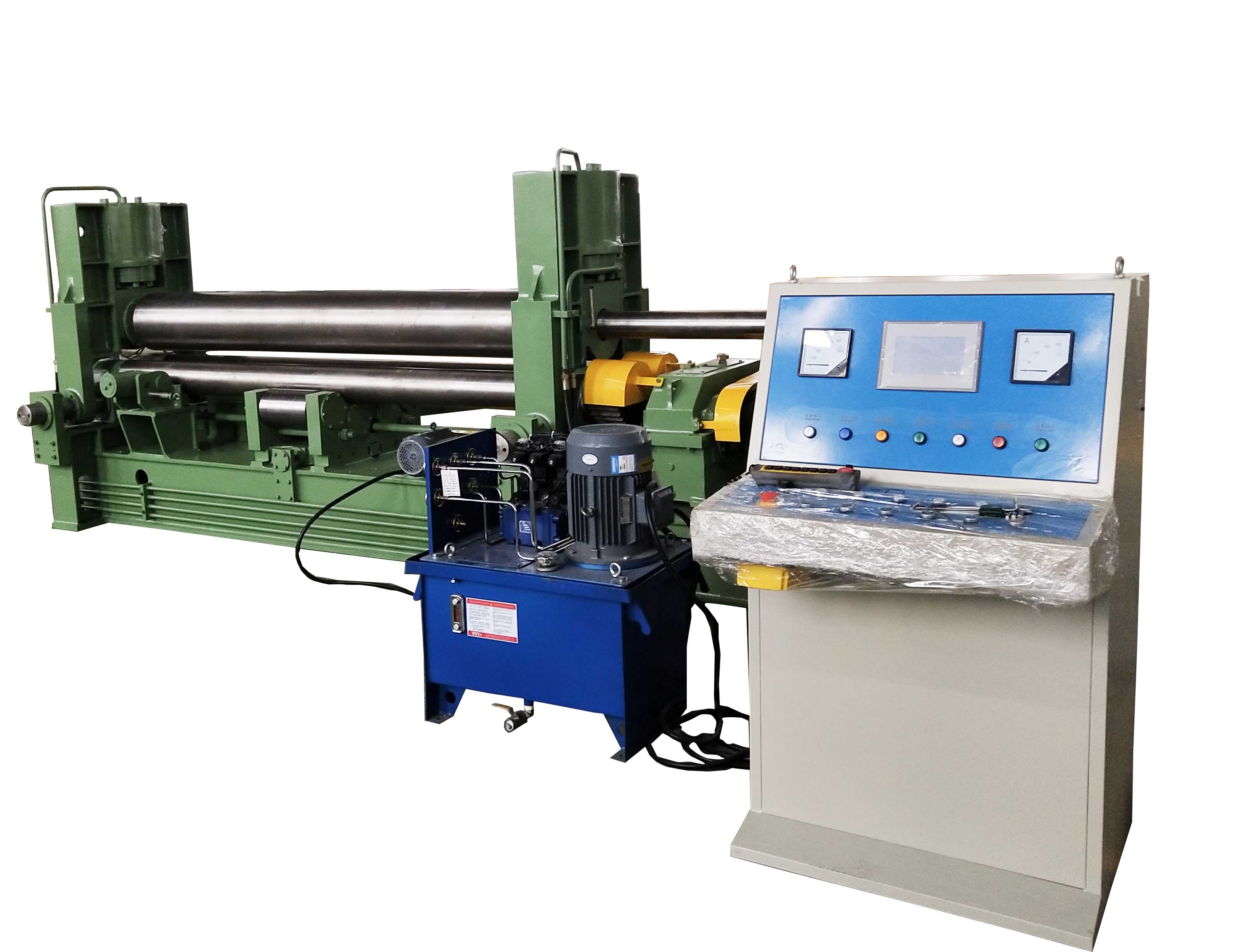

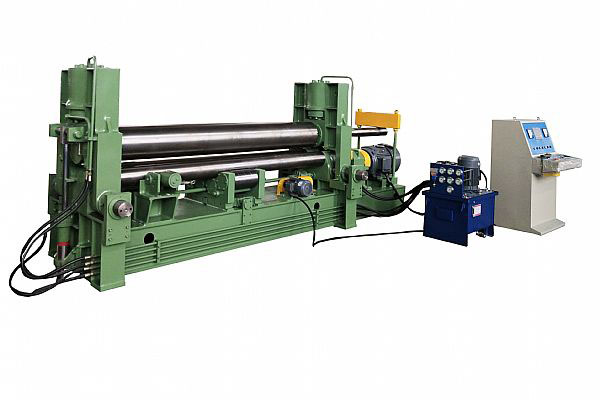

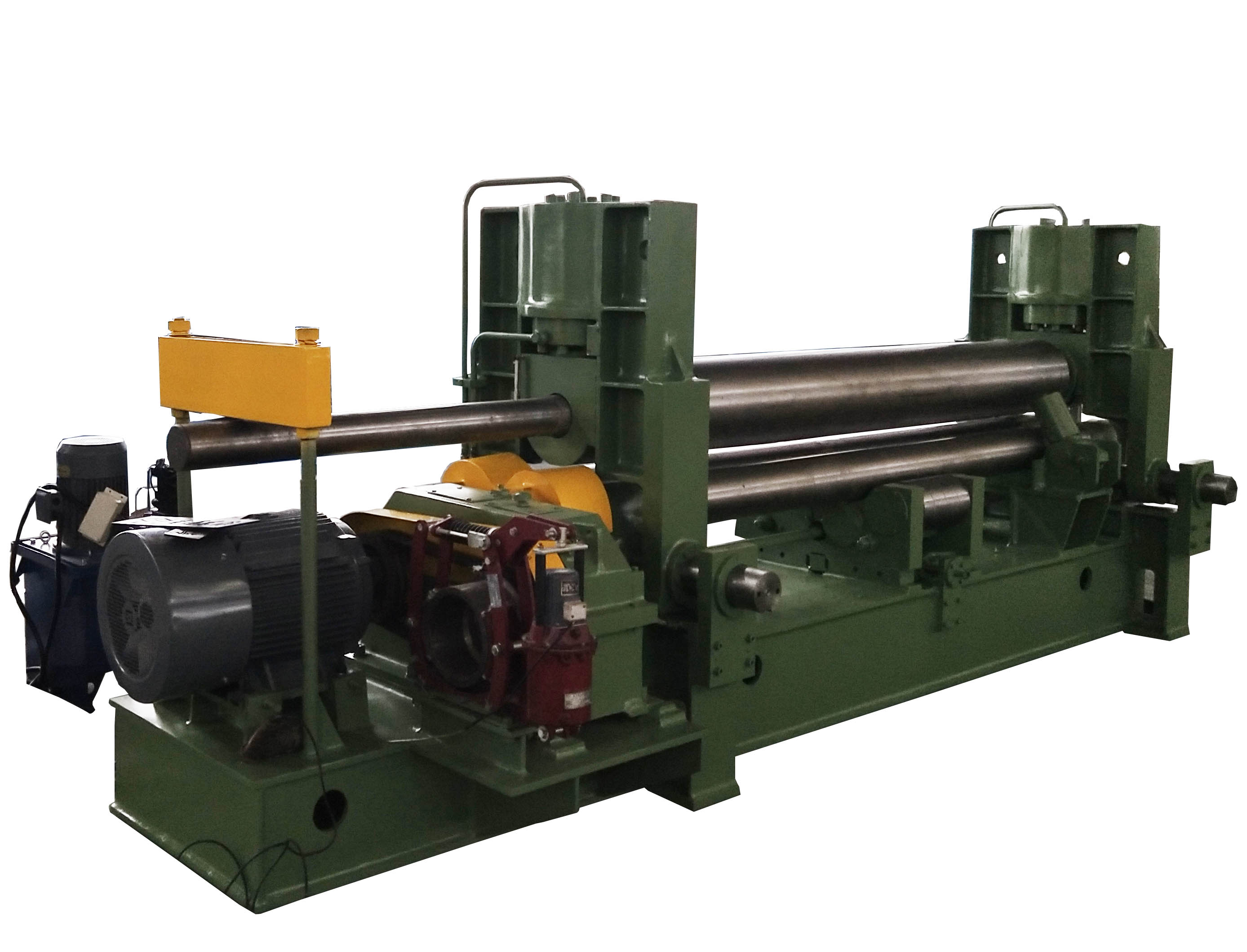

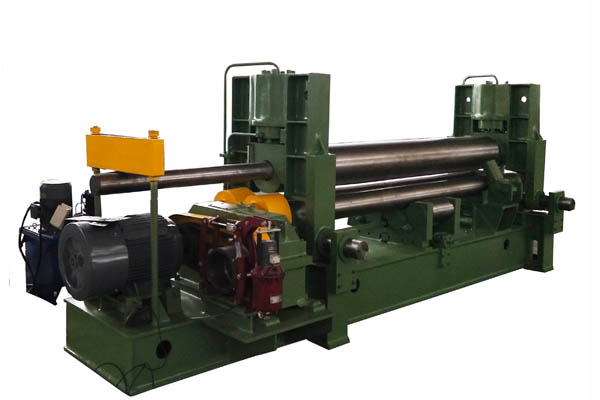

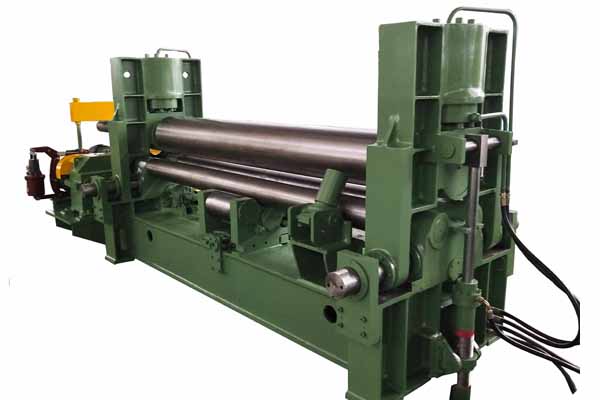

T3SNC-12T2500W Plate Bending Machine

W11SNC 3-roller Plate Bending Machine is a kind of double pinch plate bending machine. The top roller is hydraulic driving. The top roller is vertically and horizontally adjustable, and the two lower rollers are fixed. All of the rollers in alloyed steel are induction hardening and heat treatment. All of the rollers will be grinded and polished after induction hardening treatment.

W11SNC-12x2500
Rated Pressing Force from Upper Roller		Ton	75
Working temperature			At natural temperature
Plate yield limit		MPa	245
Max.	Thk. of bending plate	(mm)	12
	Thk. of pre-bending		10
	Width of bending plate		2500
Min. rolling dia. with max.size		(mm)	600
Diameter of Roller	Upper	mm	270
	Bottom	mm	150
Working Rollers	Material		42CrMo
	Hardness	(HB)	260-300
	Induction Hardened Roll		YES
	Roll Profile		crown
	Lifting Mode		hydraulic
Central distance of bottom rollers		mm	245
Diameter of supporting roller		mm	150
Adjusting way of supporting rollers			motorized
Rolling speed		m/min	3.5
Power character			380V/50Hz/3phase
Control System	Control way		PLC control + moving controller
	Display of position & displacement		LCD
	PLC		OMRON
Electrical Part System			SIEMNENS
Main Power Motor		(KW)	7.5
Motor for hydraulic		(KW)	4
Motor for horizontal moving		(KW)	1.5
Hydraulic System	Max. Working Pressure	(MPa)	19.5
	Valve		YUKEN
	Seal		VALQUE
Electrical & Hydraulic Protection Againts Overload			YES
Construction Steel Material			Q235
Side Support for Big Sheet Metal Diameters			optional
